| 인터페이스 표준: | 1형/2형/GB/T형 | 출력 전원: | 7kW |
|---|---|---|---|
| 입력 전압: | 200 - 220v | 입력 주파수: | 50Hz+-3% 또는 60Hz+-3% |
| 연결성: | WIFI/Bluetooth/4G | 사용자 인터페이스: | 3.8 인치 LCD 또는 LED |
| 커뮤니케이션 프로토콜: | 독점 및 OCPP 1.6J/2.0.1 | rfid 판독기: | ISO/IEC 14443 A/B MIFARE RFID 리더 |
| 보호 등급: | IP55 | 작동 온도: | -35 ° C ~ +50 ° C |
| 크기: | 202*104*388mm | 무게: | 6kg (열 없음) |
| 출력 전압: | AC 220V ± 20% | 출력 전류: | 각 단계 0-32a |
| 플러그 와이어 길이: | 5m(Customizable) | ||
| 강조하다: | 7kW EV charging station with WiFi,Type 2 plug EV charger,AC EV charger with warranty |
||
| Item | Specification |
|---|---|

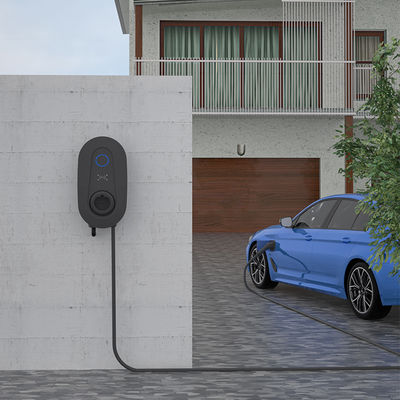

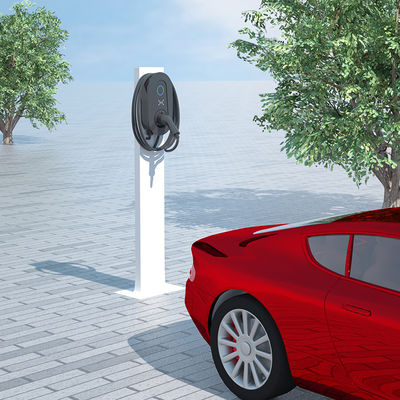

| Installation Method | Wall-mounted, column (optional) |
| Rated Power | 7KW, 11KW, 22KW |
| Charging mode | APP(QRCode), Plug & Charge, RFID |
| Size (H * W * D) | 202*104*388mm |
| Weight | 6kg (Without column) |
| Input | |
| Input voltage | 230VAC/400 VAC/400 VAC |
| Input Current | Each phase 0~32A |
| Leakage Protection | Overcurrent, overvoltage, undervoltage, ground fault, integrated surge protection, RDC (typeA + DC6mA), over-temperature protection |
| Output | |
| Output voltage | AC 220V±20% |
| Output current | Each phase 0-32A |
| Connection method | |
| Number of plug | 1 |
| Charging connection method | 1. Connection method C (plug version) 2. Connection method B (socket version) |
| Plug wire length | 5m (customizable) |
| Plug standard | Type-1/Type-2/GB/T |
| Human-computer interaction | |
| LED | LED Status light |
| Other | |
| Protection level | IP55 |
| Operating temperature | -35°C to +50°C |
| Relative humidity | <95%, No condensation |
| Lifespan | ≥10000 times |
